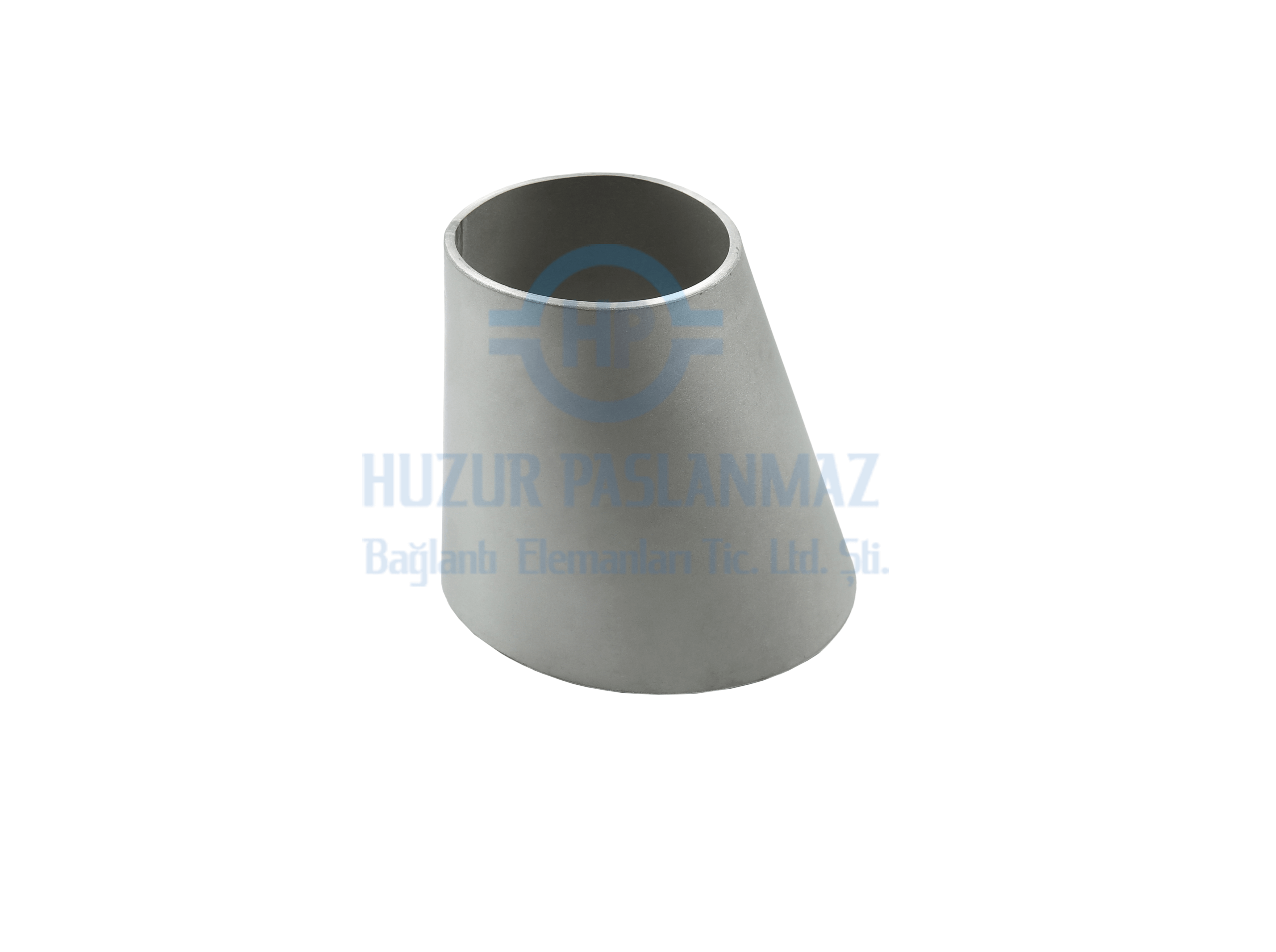

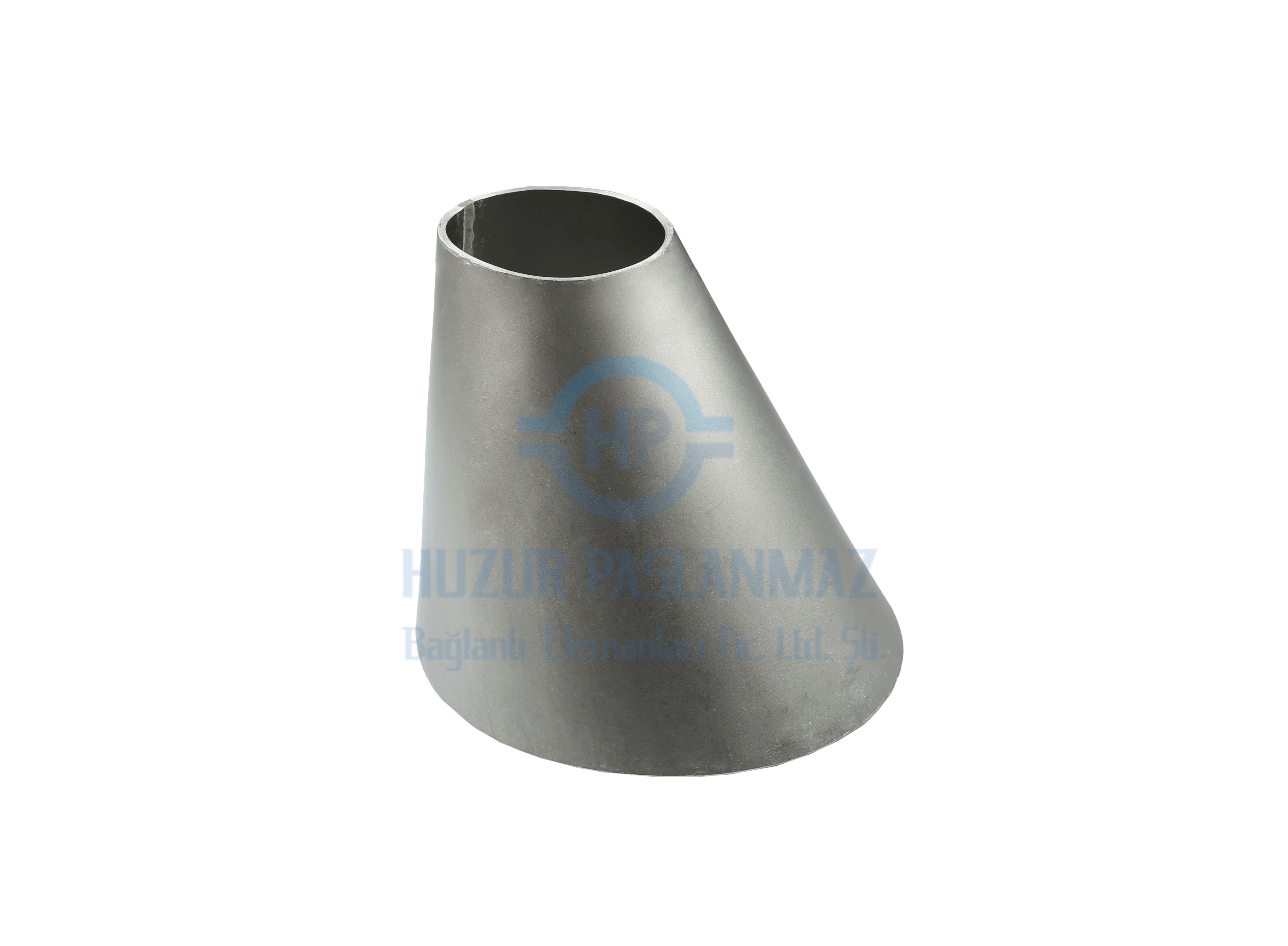

Paslanmaz Eksantrik Redüksiyon
| DN | İNÇ | MM |
|---|---|---|
| DN20X15 | 3/4" X 1/2" | 26,9X21,3 |
| DN25X15 | 1" X 1/2" | 33,7X21,3 |
| DN25X20 | 1" X 3/4" | 33,7X26,9 |
| DN32X15 | 1 1/4" X 1/2" | 42,4X21,3 |
| DN32X20 | 1 1/4" X 3/4" | 42,4X26,9 |
| DN32X25 | 1 1/4" X 1" | 42,4X33,7 |
| DN40X15 | 1 1/2" X 1/2" | 48,3X21,3 |
| DN40X20 | 1 1/2" X 3/4" | 48,3X26,9 |
| DN40X25 | 1 1/2" X 1" | 48,3X33,7 |
| DN40X32 | 1 1/2" X 1 1/4" | 48,3X42,4 |
| DN50X15 | 2" X 1/2" | 60,3X21,3 |
| DN50X20 | 2" X 3/4" | 60,3X26,9 |
| DN50X25 | 2" X 1" | 60,3X33,7 |
| DN50X32 | 2" X 1 1/4" | 60,3X42,4 |
| DN50X40 | 2" X 1 1/2" | 60,3X48,3 |
| DN65X25 | 2 1/2" X 1" | 76,1X33,7 |
| DN65X32 | 2 1/2" X 1 1/4" | 76,1X42,4 |
| DN65X40 | 2 1/2" X 1 1/2" | 76,1X48,3 |
| DN65X50 | 2 1/2" X 2" | 76,1X60,3 |
| DN80X32 | 3" X 1 1/4" | 88,9X42,4 |
| DN80X40 | 3" X 1 1/2" | 88,9X48,3 |
| DN80X50 | 3" X 2" | 88,9X60,3 |
| DN80X65 | 3" X 2 1/2" | 88,9X76,1 |
| DN100X40 | 4" X 1 1/2" | 114,3X48,3 |
| DN100X50 | 4" X 2" | 114,3X60,3 |
| DN100X65 | 4" X 2 1/2" | 114,3X76,1 |
| DN100X80 | 4" X 3" | 114,3X88,9 |
| DN125X50 | 5" X 2" | 139,7X60,3 |
| DN125X65 | 5" X 2 1/2" | 139,7X76,1 |
| DN125X80 | 5" X 3" | 139,7X88,9 |
| DN125X100 | 5" X 4" | 139,7X114,3 |
| DN150X65 | 6" X 2 1/2" | 168,3X76,1 |
| DN150X80 | 6" X 3" | 168,3X88,9 |
| DN150X100 | 6" X 4" | 168,3X114,3 |
| DN150X125 | 6" X 5" | 168,3X139,7 |
| DN200X100 | 8" X 4" | 219,1X114,3 |
| DN200X125 | 8" X 5" | 219,1X139,7 |
| DN200X150 | 8" X 6" | 219,1X168,3 |
| DN250X200 | 10" X 8" | 273X219,1 |
| DN250X150 | 10" X 6" | 273X168,3 |
| DN300X250 | 12" X 10" | 323X273 |
| DN300X200 | 12" X 8" | 323X219,1 |
STOK MEVCUTTUR
Özel büyük EKSANTRİK RD. üretimi mevcuttur
Detaylı bilgi için arayınız
